All LifeDop OB and Vascular probes have built-in electronics that provide excellent sensitivity, complete interchangeability, and maximum durability. Choose the best probe for your application with the freedom to add additional probes in the future, all on the same unit.
Features and Benefits
- Improved ergonomics and overall appearance
- Large LCD display for indication of heart-rate, signal quality, and battery status.
- Superior sound quality from high-fidelity speaker.
- Powered by three rechargeable batteries.
- Built-in audio recorder. Record Doppler sounds during an examination and refer to them for later evaluation or to replay for parents or colleagues. Download multiple recordings to a PC or Mac for unlimited, long term storage or email.
- Extended battery life.
- Low battery indication.
- Enhanced probe sensitivity.
- Interchangeable probe capability.

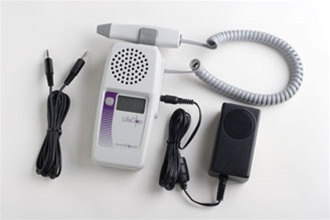

Materials Included
- L250AR Doppler
- (1) Doppler Probe (Obstetric or Vascular)
- (1) Doppler Cord
- (3) AA Rechargeable Batteries
- (1) DC Adapter
- User Manual
Obstetrical Probes
|
SD2 – 2MHz Probe |
The 2 MHz obstetrical probe is optimized for deep penetration and third trimester pregnancy. |
|
SD3 – 3MHz Probe |
The 3 MHz obstetrical probe is optimized for early fetal heart detection and designed for use during the entire pregnancy (It is the best general purpose obstetrical probe). |
|
SDW – 2MHz Waterproof Probe |
The 2 MHz Waterproof probe is for obstetrical use in water applications, and in the labor and delivery department where the probe needs to be waterproof. |
|
SDE – EchoHeart Transvaginal 5MHz Probe
|
The EchoHeart 5 MHz transvaginal obstetrical probe is optimized for earlier fetal heart detection and ideal for retroverted and obese patients. It is used when transvaginal imaging is too costly or inconvenient. |
Vascular Probes
|
SD4 – 4MHz Probe |
The 4 MHz vascular probe is designed to ease location of blood vessels. The broad, wide-angle beam has internally tilted crystals that are optimized for quickly locating vessels. |
|
SD5 – 5MHz Probe |
The 5 MHz vascular probe is designed to ease location of deeper vessels. The medium width beam and pencil-style shape provides optimum sensitivity and ease of use. |
|
SD8 – 8MHz Probe |
The 8 MHz vascular probe is designed to ease location of surface vessels. The narrow beam and pencil-style shape provides optimum sensitivity and ease of use (It is the best general purpose vascular probe). |
Documentation
Sample Report
ICD 9 Codes for CPT 93922
Reimbursement for the PAD Examination
CPT Codes and Reimbursement by State
Ankle/Brachial Index Chart
Ankle Brachial Index Assessment Form
Warranty Information
- Two-year warranty.
