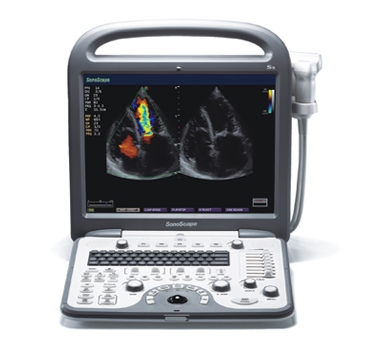

The S8 is designed by our genius engineering team to be a lightweight but powerful HCU. Although combining high capacity built-in Li-ion battery and two active transducer sockets, the S8 still keeps a slim and lightweight compact architecture, assuring it is available anytime and anywhere.
Features and Benefits
- 15” LCD anti-glare screen: provides a clear image from any angle.
- 2 universal transducer sockets for quick transducer switch during scanning
- Abundant connection interfaces: DICOM 3.0, USB ports, VGA, S-video, and ECG port
- Built-in Li-ion battery for more than one hour of continuous scanning. With the slim and compact trolley, the S8 can also be used in a stationary method.
- Full-featured portable color Doppler unit from SonoScape, designed in a new powerful lightweight architecture to meet all your high performance application requirements.
- Complete imaging mode: 2D with THI，,Color M,CFM, PDI, PW,HPRF, CW
- Full cardiovascular transducers: adult and pediatric TEE, phased array, pediatric phased array, high frequency linear array
- Supports high density broadband transducers
- Integrated with state-of-the-art technologies: u-scan, B-steer
- Multiple-beam processing, and 4D imaging
- Comprehensive cardiovascular packages: Stress echo, TDI, Steer M, IMT, and Automatic flow volume analysis
- Intuitive interface and full function control panel
- Multi-specialty High Performance Imaging.
Materials Included
- S8-Express Main Unit
- (1) Ultrasound Probe (192 elements linear array L742, 4-16 MHz)
- (1) Ultrasound Jelly
- (1) Probe Holder
- (1) Power Cable
- (1) Grounding Wire
- (1) S-Video Cable
- (1) BNC Cable
- (1) Print Cable
- (1) User Manual
- Standard Software:
- Imaging modes: B/ 2B/ 4B/ M/ THI/ CFM/ PDI/ DirPDI/ PW/ HPRF/ CW
- Pulse Inversion Harmonic
- Trapezoidal Imaging
- Panoramic Imaging
- Compound Imaging
- Freehand 3D Imaging
- u-Scan: 2D speckle reduction technology
- Multi-beam technology
- Advanced cardiovascular kit: TDI/ Color M/ IMT/ Steer M
- DICOM 3.0: Transmission/ Worklist/ Print/Storage Commitment/MPPS
- Stress Echo
- M-Tuning: one button image optimization
- Real time 3D (4D)
Note: 192 Elements Linear Array L742 (4-16 MHz) Transducer is included. This probe can be exchanged for a different probe at an additional cost.
Available Probes
- 128 Elements Linear Array L741(Vascular, Small Parts, MSK etc.), 4-16 MHz/ 46mm
- 192 Elements Linear Array L742(Vascular, Small parts, MSK etc.), 4-16MHz/ 38mm
- 192 Elements Linear Array L743(Vascular, Small parts, MSK etc.), 4-16MHz/ 46mm
- 256 Elements Linear Array L752(Vascular, Small parts, MSK etc.), 4-16MHz/ 52mm
- 128 Elements Convex Array C344 (Abdominal, Obstetrics, Gynecology), 2-6.8MHz/ R40mm
- 128 Elements Convex C354 (Abdominal, Obstetrics, Gynecology), 2-6.8MHz/ R50mm (No CE)
- 192 Elements Convex Array C353 (Abdominal, Obstetrics, Gynecology), 2-6.8MHz/ R55mm
- 72 Elements Convex Array C322(Abdominal Biopsy), 2-6.8 MHz/ R20mm
- 192 Elements Endocavity 6V3 (Gynecology, Obstetrics, Urology), 3-15MHz/ R10mm
- 128 Elements Transrectal EC9-5 (Urology), 3-15 MHz/ R8mm
- 64 Elements Phased Array 2P2 (Cardiac, Transcranial), 1-6MHz
- 64 Elements Phased Array 5P1 (Cardiac, Transcranial, Pediatric), 3-9MHz
- Volumetric Convex Array VC6-2 (Obstetrics, Abdominal, Gynecology), 2-6.8MHz/ R40mm
Warranty Information
- 2-Year Warranty
