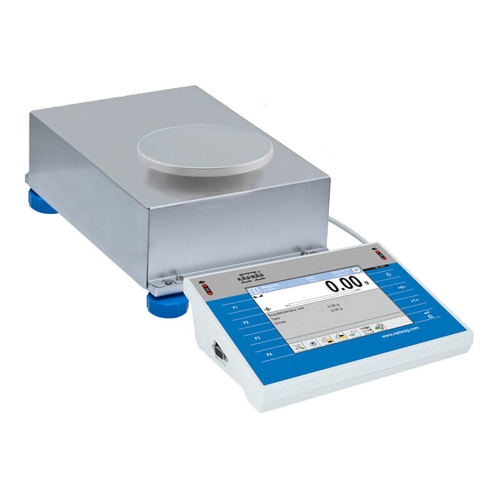

Radwag MPS-6000.Y Weighing Module

Old Product Code: MPS-6000.Y New Product Code: WX-016-0071



MPS Y device consists of the electromagnetic module of high resolution and Y operation panel equipped with LCD. It has been designed to be easily integrated into customer-owned weighing systems, and therefore can be built either into technological line or inside weighing devices or laboratory equipment. The MPS Y allows to perform the measurements using the under-pan weighing method or a regular weighing pan. In case of the under-pan method the load is suspended beneath the module.

Features and Benefits

• Brand new design of the electromagnetic mechanism housed in an aluminum enclosure.
• Readability of 0.01g.
• Ease of adaptation to the required storage space.
• Internal adjustment.
• Various options of hardware configuration.

Technical Specifications

• Maximum capacity [Max]: 6000g
• Readability [d]: 10mg
• Tare range: -6000g
• Display: 5.7′ resistive color touchscreen
• Power supply: 100 ч 240V AC50/60Hz
• Operating temperature: +15 ч +35°C
• Relative humidity: 40% ч 80%
• Weighing pan dimensions: ш115mm
• Device dimensions: 293 x 190 x 112mm
• Net weight: 4.8kg

Warranty Information:

• 2-Year Warranty
