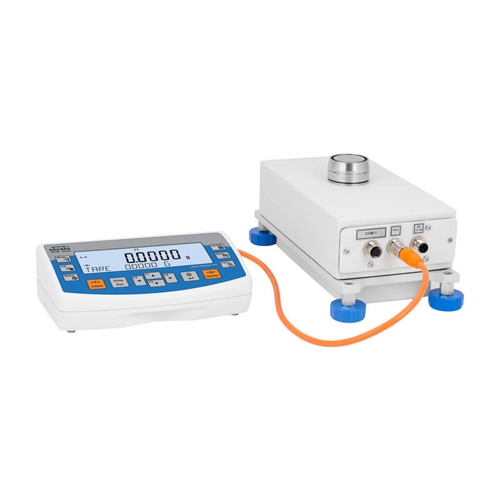

Radwag MAS.1.82-220.R Weighing Module

Old Product Code: MAS.1.82-220.R New Product Code: WX-016-0165



MAS.1 R device is an electromagnetic weighing module of high resolution, equipped with R touch panel featuring 5.7′ display. The module is intended to be integrated into customer-owned weighing system. The compact design and integrated electronics make it possible to adapt the module into customer’s technological line or to install it inside customers’ device.

Features and Benefits

• Brand new design of the electromagnetic mechanism housed in an aluminum enclosure.
• Readability of 0.01 mg.
• Overload protection.
• Ease of adaptation to the required storage space.
• Internal adjustment.
• Various options of hardware configuration.

Technical Specifications

• Maximum capacity [Max]: 82/220g
• Minimum load: 1mg
• Readability [d]: 0.01/0.1mg
• Tare range: -220g
• Minimum weight (USP): 40mg
• Minimum weight (U=1%,k=2): 4mg
• Repeatability (Max): 0.1mg
• Repeatability (5% Max): 0.02mg
• Linearity: ±0.06/0.2mg
• Stabilization time: 6/2s
• Display: LCD (backlit)
• Protection class: IP54
• Communication interface: RS232
• Power supply: 100 ч 240V AC50/60Hz
• Operating temperature: +10 ч +40°C
• Relative humidity: 40% ч 80%
• Weighing pan dimensions: ш42mm
• Device dimensions: 289 x 143 x 125mm
• Packaging dimensions: 650 x 340 x 305mm
• Net weight/Gross weight: 4.7kg/6.7kg

Warranty Information:

• 2-Year Warranty
