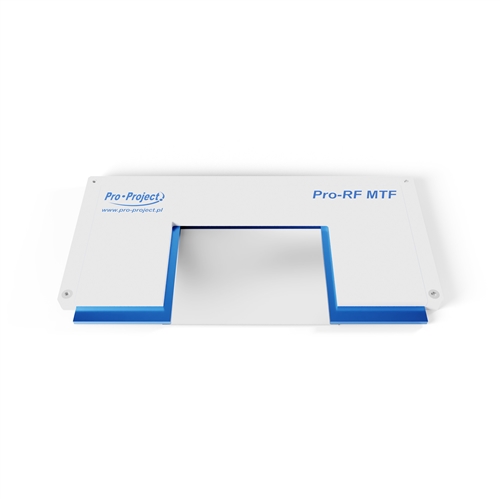

The edge test device according to IEC 62220-1 for determination of Modulation Transfer Function that consists ofa tungsten plate fixed on a lead plate
Features and Benefits
- Complies with:
- IEC 62220-1
- DIN EN 62220-1
- IEC 62220-1-1:2015
- CE certified
- The manual provides detailed guidelines for carrying out each test, results assessment and registration
- Tungsten edge scragginess less than 5 µm
- PMMA cover
Technical Specifications
- Overall Dimensions: 220 x 110 x 13 mm
- Tungsten Plate Dimensions: 100 x 80 x 1 mm
- Lead Plate Dimensions: 200 x 100 x 3 mm
