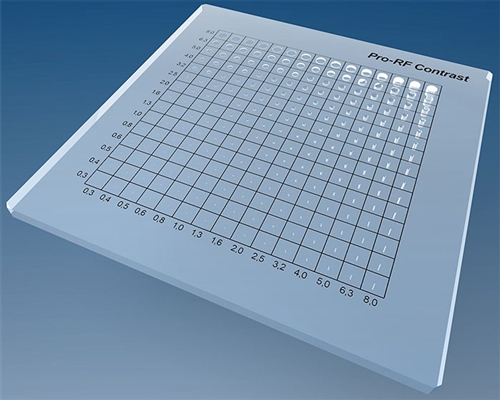

A Contrast-Detail (CD) phantom makes it possible to quantify both detail and contrast as observed by the radiologist. It can be used within the entire range of radiography diagnostic imaging systems, such as fluoroscopy and angiography. It has 405 holes that generate subtle changes in contrast.
Features and Benefits
- Made of PMMA
- 15 columns and 15 rows of holes
- Two cylindrical holes for each combination, except for the first 3 rows with the largest diameters
- Diameters of holes range from 0.3 to 8.0 mm
- Depths of holes range from 0.3 to 8.0 mm
- Tolerance of hole measurements is at least 0.01 mm
- All markings on the phantom are opaque for X-rays
- Available in rectangular and circular shapes (Please specify rectangular or circular in your quote request)
- Additional Cu filters for different attenuation combinations
- Carrying case is included
Technical Specifications
- Dimensions: 10′ x 10′ x 0.39′
Warranty Information
- 1-Year Warranty
