This Digital Subtraction Angiography (DSA) Phantom follows the recommendation in Report No. 15 by the AAPM (American Associationof Physicists in Medicine) – Digital Radiology / Fluorography Task Group of the Diagnostic X-Ray Imaging Committee. Phantom is designed toevaluate digital functions of DSA systems and can be used to check: contrast range, resolution, linearity, uniformity, amplifier dynamic range,registration accuracy and subtraction effectiveness. Its modular construction allows setting up the desired test configuration in a very easy andaccurate manner.

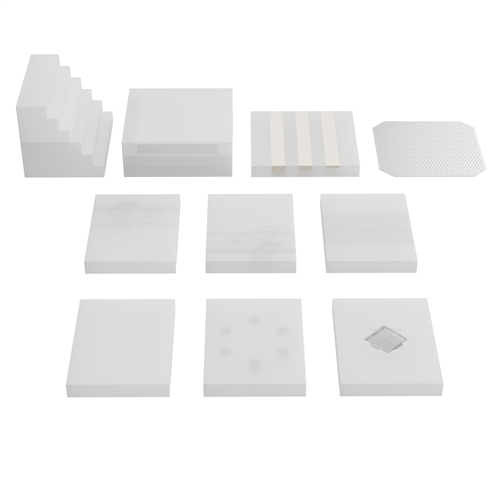

Features and Benefits

• Complies with:
  • AAPM Report No. 15 – Performance Evaluation and Quality Assurance in Digital Subtraction Angiography – Diagnostic X-Ray Imaging Committee Digital Radiography / Fluorography Task Group – May 1985
  • IEC 61223-3-1
• CE certified
• The manual provides detailed guidelines for carrying out each test, results assessment and registration.
• Section I and II:
  • Step Wedge module, 6 step wedges (each 25.4 mm high) to test dynamic range. Can be folded into 203.2 x 203.2 x 76.5 mm solid block.

• Section III:
  • Slot block with a space to fit other test modules.

• Registration Plate
  • Made of aluminium with an array of 3.18 mm holes.

• Bone Section
  • With three PTFE strips 25 mm in width and 5, 10 and 15 mm in thickness.

• High Contrast Resolution Section
  • Containing pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm).
  • Thanks to the dedicated recesses, test pattern can be placed in different orientations.

• Blank insert
  • Used with other modules forms a mask plate.

• Linearity Insert
  • Contains 6 iodine areas (19 mm diameter) of different iodine thickness and concentration: 0.5, 1.0, 2.0, 4.0, 10.0 and 20.0 mg/cmІ.

• Low Contrast Artery Insert
  • Containing 3 sets of analogue blood vessel group (diameters 0.5, 1.0, 2,0 and 4.0 mm), each vessels group includes different iodine concentrations: 2.5, 5.0 and 10.0 mg/cc.

• 150 mg/ml Iodine Artery Insert
  • 3 sets of analogue blood arteries (thickness 1.0, 2.0, 4.0 mm) each includes arteriarctial and arterial aneurysm whose sizes are 1/4, 1/2 and 3/4 of artery diameter.

• 300 mg/ml Iodine Artery Insert
  • 3 sets of analogue blood arteries (thickness 1.0, 2.0, 4.0 mm) each includes arteriarctia and arterial aneurysm whose sizes are 1/4, 1/2 and 3/4 of artery diameter.

• Carrying Case

Technical Specifications

• Size:
  • Section I and II:
    • 6 step wedges (each 25.4 mm High)
    • Can be folded into 203.2 x 203.2 x 76.5 mm solid block.
  • Section III:
    • Outer Size: 203.2 x 203.2 x 76.5 mm
    • Slot Size: 203.2 x 152.4 x 25.4 mm
  • Registration plate:
    • 203.2 x 203.2 x 1.5 mm
  • Bone section:
    • 203.2 x 203.2 x 25.4 mm
  • High Contrast Resolution Section
    • 203.2 x 203.2 x 25.4 mm
  • Blank Insert
    • 203.2 x 152.4 x 25.4 mm
  • Linearity Insert
    • 203.2 x 152.4 x 25.4 mm
  • Low Contrast Artery Insert
    • 203.2 x 152.4 x 25.4 mm
  • 150 mg/ml Iodine Artery Insert
    • 203.2 x 152.4 x 25.4 mm
  • 300 mg/ml Iodine Artery Insert
    • 203.2 x 152.4 x 25.4 mm
