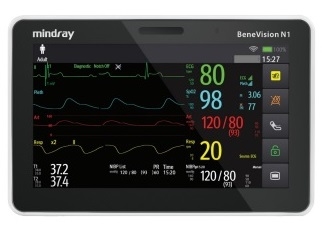

Mindray BeneVision N1 Transport Patient Monitor w/ Masimo SpO2, ST/Arrhythmia & Integrated CO2

The BeneVision N1 is a compact 3-in-1 solution designed to adapt to the monitoring needs across a hospital. Part of the N-Series premier patient monitoring platform, N1 features an intuitive smartphone-style display and essential parameters, enabling high-quality, patient-centric care. The N1 serves as a comprehensive multi-parameter module, a powerful transport monitor and a versatile bedside monitor – all in one.



Features and Benefits

• Compact, lightweight (2.0 lbs)
• 5.5′ capacitive touchscreen display with smartphone-like, multi-gesture control
• Consistent intuitive user interface across N-Series platform
• Supports display of up to 6 waveforms
• Comprehensive standard measurements include 3, 5, 6-lead ECG, Masimo SpO2, 2 IBP, NIBP, respiration, and 2 temperatures
• Arrhythmia analysis and atrial fibrillation (Afib) detection.
• Extensive data storage plus up to 48 hours of full disclosure
• Serves as the core parameter module for N-Series monitors
• Standard 2.4/5 GHz dual band wireless communication
• Included ST analysis and QT/QTc interval monitoring.
• Included integrated CO2.

Materials Included

• BeneVision N1 Transport Patient Monitor
• (1) Adult Reusable NIBP Cuff
• (1) Blood Pressure Hose
• (1) 5-Lead ECG Trunk Cable
• (1) 5-Lead ECG Snap Lead Wires
• (1) Masimo Adult Reusable SpO2 Sensor
• (1) Masimo Sensor Cable
• (1) MR420B Temperature Adapter Cable (Temperature probes sold separately)
• (1) Adult disposable airway sampling line
• (1) Adult disposable nasal sampling line
• (1) Lithium Ion Battery
• (1) Power Cord
• (1) User Manual

Technical Specifications

• Dimensions
  • Height: 4′
  • Width: 5.9′
  • Depth: 3.2′
• Weight: 2 lbs
• Interfacing
  • DC Power Input: 1
  • Defib Sync and Analog Out: 1
  • Multi-Pin Connector: 1
• Power Requirements
  • N1 Main Unit: Input: 12 VDC (±10%), 2 A, 1.0 A to 0.6 A
  • AC Adapter
    • Input: 100 to 240 VAC (-15%, +10%), 50/60 Hz
    • Output: 12 VDC (±10%), 2.5 A
• Battery
  • Type: Rechargeable lithium-ion
  • Capacity: 2500 mAh, 7.56 VDC
  • Run Time:
    • When powered by two new fully-charged batteries at 25єC±5єC with 5-lead ECG, SpO2, and auto NIBP measurements every 15 min, and factory default screen brightness, Wi-Fi disabled. &gt,8 hr without internal CO2
    • When powered by one new fully-charged battery at 25єC±5єC with 5-lead ECG, SpO2, IBP, CO2 sampling, and auto NIBP measurements every 15 min, and factory default screen brightness, Wi-Fi enabled. &gt,3 hr with internal CO2
  • Recharge Time
    • When the monitor is off
      • 6 hours to 90% Without internal CO2 module
      • 3 hours to 90% With internal CO2 module
• Environmental Conditions
  • Operating Temperature
    • 0°C to 40°C: Main unit and AC Adapter
  • Storage Temperature
    • -30°C to 70°C: Main unit and AC Adapter
  • Operating Humidity
    • 5 to 95% (non condensing): Main unit & AC adapter
  • Storage Humidity
    • 5 to 95% (non condensing) Main unit & AC adapter

Warranty Information

• 1-Year Warranty
