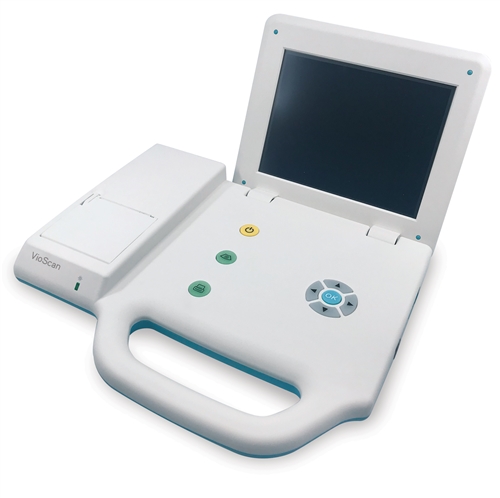

Infinium VioScan® Portable Bladder Scanner

The Infinium VioScan ® is a portable, non-invasive ultrasound bladder scanning device. The Vioscan® provides a patented algorithm to measure and determine bladder volume and the need for catheterization. The VioScan® features real time imaging and accurate volume measurement with an easy positioned hand-held probe. A high definition color screen and built in strip chart recorder are standard.

The VioScan® offers cost saving benefits in Urology, Genecology, General Surgery, ICU, Emergency Medicine, and Nursing Home Facilitie



Features and Benefits

• 8.4 inch hi-definition color screen
• Simplified user-friendly user interface
• Easy positioned simple to use 2.6 MHz probe
• Data storage of 100 cases
• Rechargeable battery (2 inlcuded)
• Male, female, pediatric settings
• Multiple languages: English, French, German, Spanish
• Optional mobile cart available

Materials Included

• VioScan® unit
• (1) 2.6 mHz Probe
• (2) Rechargeable Batteries
• (1) Power Adapter
• (1) Power Charger
• (1) Transport Case
• (1) Paper Roll
• User Manual

Technical Specifications

• Dimensions: 310 x 260 x 50 mm
• Weight: 6 lbs
• Transducer: 2.6MHz
• Scan mode: Male, Female, Pediatric(PVR)
• Scan depth: 140mm
• Scan Range: 0 – 999ml
• Sway Angle: 95°±2°
• Rotating Angle: 180°±2°
• Storage Capacity: 100 cases
• Charger
  • Input Voltage of the Device: AC 220V±10%,50±1HZ
  • Output Voltage of Adapter: DC 9.0V
  • Output voltage of Charger: (No load): DC 8.5V
  • Output Interface: USB for data store and software upgrade
  • Display Mode: Measured result, present location and B mode image
• Battery
  • Voltage: 7.4V (Standard Value)
  • Capacity: 4200mAh
  • Charge Time: 3-4 Hours
  • Battery Life: 4 hours
  • Measurement accuracy: ±15%,±15ml
  • Power supply: built-in battery

Warranty Information

• 1-Year Warranty

Documentation

Brochure
