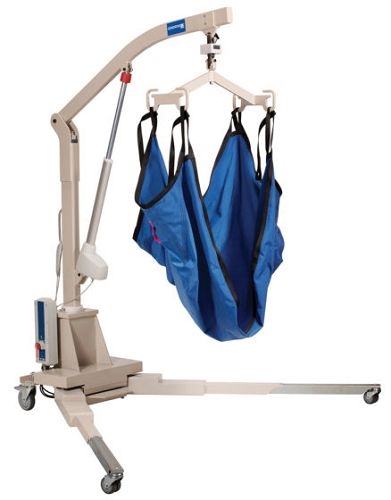

Gendron PL700S, Bariatric Maxi Patient Lift with Digital Scale and 700 lbs Weight Capacity
$4,073.00
Old Part Number: PL700S-Gen, New Part Number: PL700S
Gendron PL700S, Bariatric Maxi Patient Lift with Digital Scale and 700 lbs Weight Capacity
Features and Benefits
- Digital Scale
- Requires No Manual Lifting from the Caregiver for Safer Transfers – Fully Electric
- One-Handed Remote for Full Caregiver Operation within Comforting Distance of the Patient
- Four-Point Sling Suspension Bar for better Patient Support
- Low-Clearance Chassis Opens and Closes to Accommodate Beds, Wheelchairs and Toilets
- Safer for Patient and Caregiver
- Leg movement is Electronically Controlled
- 700 lbs Patient Weight Capacity
Materials Included
- Base, Boom and Sling
- Swivel and Rear Locking Casters
- Hand Held Remote
- Two Quick Charge Batteries and Integrated Charger
Technical Specifications
- Battery Powered Linear Actuators
- Boom Pivot Height x Overall Length: 58′ x 63′ (147.3 cm x 1600.2 cm)
- Lift Range (Lowest Position): Floor
- Lift Range (Highest Position): 20 1/2′ (52.1 cm) to Bottom of Sling
- Base size L x W: In Operation (Legs Extended and Open): 58′ x 82 1/2′ (147.3 cm x 209.6 cm)
- Base Size L x W: For Transport and Storage (Legs Retracted and Closed):53′ x 36′ (134.6 cm x 58.4 cm)
- Minimum Under Bed Clearance Requirement: 4 1/2′ (15.2 cm)
- Minimum Ceiling Height Requirement: 86′ (218.4 cm)
- Battery Type: Rechargeable (Integrated Charging System)/Removable/Replaceable
- Operating Controls: Caregiver Operated, Hand-Held, Push Button Pendant with Manual Lower Capability
