On-Site Training Included!

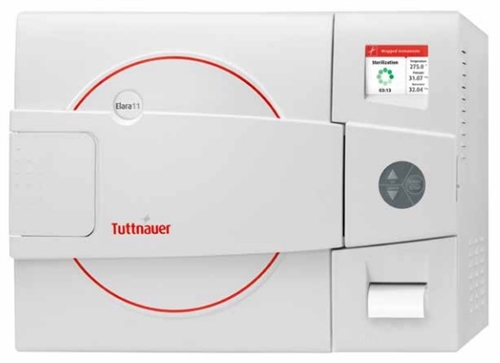

The Elara 11 tabletop autoclave is a reliable and robust Class B sterilizer designed for the needs of medical clinics and veterinary clinics where autoclaving requires pre post vacuum sterilization.
Features and Benefits
- Virus protect cycle included
- High-volume, pre and post vacuum pump for optimum sterilization results.
- Large 7.5 gallon chamber maintains a compact outer dimension and a small footprint. It is a perfect fit for a standard 24-inch shelf or counter. The larger chamber decreases the number of cycles needed by sterilizing more instruments in one cycle.
- Elegant door is equipped with an automated double safety locking mechanism. With a single slide the door will smoothly close and automatically lock.
- 5 stainless steel trays eliminate the need to reverse or replace the rack between trays or cassettes.
- Accessible front or top water filling options. The front water-filling economizes on office space by eliminating the need to keep the top of the autoclave accessible.
- Steam is continuously provided by an independent steam generator allowing for no waiting time between cycles.
- Built-in printer prints detailed cycle progress information and can print the history of the last 40 cycles.
The Elara 11 offers a total of 8 programs: 6 sterilization programs and 2 test programs: Bowie and Dick Test and Vacuum Test. The user can disable programs which allows for savings on validation costs.
| Program Name |
Instruments and Materials |
Sterilization Temp. |
Sterilization Time |
Drying Time |
Cycle Time |
| Flash 134 |
Unwrapped Instruments |
134°C (273°F) |
4 Min. |
1 Min. |
25 Min. |
| P134 |
Porous Wrapped and Hollow A |
134°C (273°F) |
18 Min. |
20 Min. |
28 Min. |
| Wdry 134 |
Wrapped Instruments |
134°C (273°F) |
4 Min. |
20 Min. | 42 Min. |
| No Dry 121 |
Unwrapped Instruments |
121°C (250°F) |
20 Min. |
– |
40 Min. |
| Wdry 121 |
Porous Wrapped and Hollow A | 121°C (250°F) |
20 Min. |
20 Min. | 60 Min. |
| Delicate | Porous Wrapped and Hollow A | 121°C (250°F) | 20 Min. |
– |
45 Min. |
Safety Features
- 316L grade stainless steel chamber and door with electro-polish finish.
- A cycle will not start unless the door is properly locked.
- Automated double locking safety device prevents door from opening while chamber is pressurized.
- Automatic safety shutoff prevents overheating of chamber and load.
- Two independent clean water level indicators: A digital alert and a visual indicator.
- A water level alert indicates when waste water reservoir should be emptied.
- Audible signal indicates if cycle is not properly completed.
- Meets established International standards and specifications.
Materials Included
- Elara11 Pre/Post – Vacuum Class B Sterilizer
- (5) Trays
- (1) Printer Paper
- User Manual
Technical Specifications
- Chamber Dimensions: 11 inches (280mm) x 19.8 inches (504mm)
- Chamber Volume: 7.5 gal (28.5L)
- Number of Trays: 5
- Tray Dimensions WxHxD: 6.7 inches (170mm) x 0.8 inches (20mm) x 16.3 inches (415mm)
- Voltage (V) Freq. (Hz.): 1ph 230V 50/60 Hz
- Current (A) Power (W): 10A 2300W
- Overall Dimensions: WxHxD: 20.8 inches (530mm) x 17.4 inches (444mm) x 25.4 inches (645mm)
- Shipping Weight: 184 Pounds (84kg)
Warranty Information
- 1-Year Warranty on Parts and Labor, 10-Year Warranty on Chamber
Documentation
Virus Protect Cycle Literature
