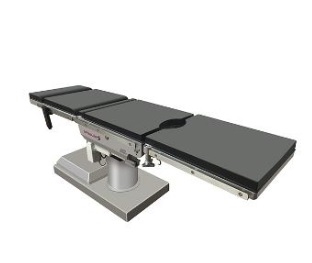

ATS Laterus Surgical Table

Built to the foremost standard of quality, with intuition and stability in mind the ATS Laterus Surgical Table is the new standard in patient positioning.



Features and Benefits

• Silent electro-hydraulic movements
• 500 LB Lift Capacity
• Electronic control with safety lock
• Mobile anti-static castors with floor lock
• Horizontal Slide for Imaging Applications
• 180 degree table top rotation
• Flex / Reflex positioning
• Easy access to electro-hydraulic system for service
• Comes in standard black upholstery
• Included Ergonomic Hand Control
  • Easy Touch Positioning
  • ‘E’ Lock button to avoid accidental
• Optional 1000 lbs lift capacity

Technical Specifications

• Height: 27.5′ to 43′
• Trendelenburg/Reverse Trendelenburg: 30°
• Tilt Left/Right Oblique: 15°
• Chest Plate Adjustment: 25°/35°
• Back Plate Adjustment: +75°/ -20°
• Head Plate Adjustment: +20°/-90°
• Leg Plate Adjustment: 90°
• Leg Plate Angle: 0~ 90°
• Rotation: 0~ 180°
• Longitudinal Shift: 350 mm

Warranty Information

• 2-Year Warranty
